Product Details
Place of Origin: china
Brand Name: zmsh
Model Number: 6inch single side polished
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: by case
Packaging Details: Vacuum-sealed containers with nitrogen backfill in a class 100 environment
Delivery Time: 15-30days
Supply Ability: 1000pcs/months
Material: |
99.999％ Al2O3 |
Industry: |
Led，optical Glass，eli-ready Wafer |
Application: |
Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics |
Color: |
White Or Red Or Blue |
Vision Light Transmissivity: |
85％ |
Advantagement: |
High Hardness9.0，wear Resistance, |
Type: |
Single Crystal |
Size: |
Dia150mm |
Material: |
99.999％ Al2O3 |
Industry: |
Led，optical Glass，eli-ready Wafer |
Application: |
Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics |
Color: |
White Or Red Or Blue |
Vision Light Transmissivity: |
85％ |
Advantagement: |
High Hardness9.0，wear Resistance, |
Type: |
Single Crystal |
Size: |
Dia150mm |
dia150mm 6inch single side polished sapphire substrates forled ,C-plane,A-aixs R-plane 6inch Al2O3 crystal wafer,6inch C-axis double side polished sapphire wafer for led epi-ready,sapphire substrates, Al2O3 crystal optical lens
| Product name |
led sapphire wafer |
| sapphire optical lens chemical formula | Al2O3 |
| Crystal structure | Hexagonal |
| Hardness Mohs | 9H |
| Compressvise strength | Gpa 2.0 |
| Density(20℃) | 3.98g/cm |
| Fusion point | 2040℃ |
| Boiling point | 2980℃ |
| Coefficient of Thermal Expansion | α=5.8×10 -6 /K |
| Specific heat | 0.418W.s/g/k |
| Thermal conduction | 25.12W/m/k(@100°C) |
| Optical transmission range | 0.17-5.5μm |
| Transmission(0.3~5um) | 85-88% |
| Refractive index | no=1.768nd |
| ne=1.76nd | |
| dn/dt | 13×10-6/K(@633nm) |
| Permittivity | 11.5(//c), 9.3(⊥c) |
Diameter:150.00±0.1mm
Thickness :1000±25um
or 1300±25um or by customized
Primary flat:47.5±2.5mm
Orientation flat: A±0.1° A-plane(11-20)
Orientation: C-plane(0001) Off M -axis 0.2°±0.1°
Frontside Surface Roughness:Ra＜0.3nm
Backside Surface Roughness: 0.8~1.2um
Or double side polished
TTV:＜20um
BOW:-25~0um
WARP:＜30um
Laser Mark Series No. by needs
Package:Vacuum-sealed containers with nitrogen backfill in a class 100 environment
Cleanliness :Free visible contamination
--------------------------------------------------------------------------------------------------------------------------------------
How about sapphire advantage and applications?
1- Thinner and Stronger than Standard Glass Windows
2- Transmits Wavelengths Ranging From UV to Mid-Infrared
3- Features Extreme Surface Hardness and Chemical Resistance
Applications
----------------------------------------------------------------------------
We also can supply professional customized service in time ,and provide cooperation and support
of new product development and technology appliance.
Our QC standard for sapphire substrates

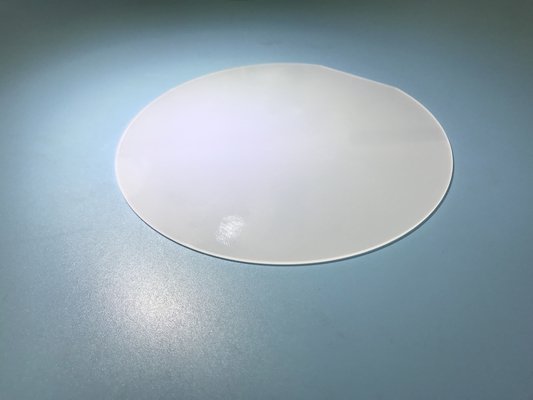

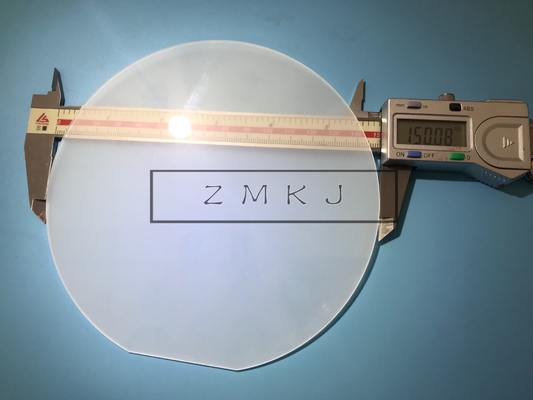

6inch product pictures by single side polished
customize the material, specifications and optical coating for your optical components based
on your needs.
