sapphire prism's abstract

Sapphire prisms are highly valued in optical applications due to their exceptional material properties, including high mechanical strength, thermal stability, and resistance to chemical corrosion. Made from single-crystal aluminum oxide (Al₂O₃), sapphire prisms are characterized by their high refractive index and wide transmission range, covering ultraviolet (UV), visible, and infrared (IR) wavelengths. These attributes make them indispensable in precision optics, laser systems, and scientific instrumentation where durability and performance in extreme conditions are paramount.

When designing and utilizing sapphire prisms, several critical parameters must be considered to optimize their performance. The refractive index of sapphire, combined with carefully controlled prism angles, allows precise manipulation of light, making it essential for applications such as beam deviation and dispersion control. Additionally, the wide wavelength range of sapphire ensures effective operation across different spectral regions, enhancing the versatility of the prism in various optical systems.

Surface quality is another key factor in the performance of sapphire prisms, with high-precision polishing reducing optical losses and scattering. Sapphire prisms can also be coated with anti-reflective (AR) coatings or other specialized films to further improve light transmission and protect the surface from environmental exposure. Moreover, the mechanical strength and chemical resistance of sapphire ensure long-term stability even in harsh environments, making sapphire prisms suitable for high-temperature applications and exposure to aggressive chemicals.

Finally, customization of prism size, orientation, and coatings enables their integration into specialized optical systems. By carefully considering these parameters and ensuring compatibility with the intended optical setup, sapphire prisms can significantly enhance the efficiency and precision of advanced optical instruments, ensuring reliable performance under demanding conditions.

sapphire prism's properties

Specifications:

Physiccal and Optical Properties:

1. High Hardness

• Sapphire is second only to diamond in hardness, making sapphire prisms extremely durable and resistant to scratching and wear. This makes them ideal for use in environments where mechanical robustness is essential.

2. High Thermal Stability

• Sapphire prisms can withstand extremely high temperatures without deformation or loss of optical properties. This thermal stability allows them to be used in high-temperature environments, such as in laser systems or high-energy optics.

3. Wide Optical Transmission Range

• Sapphire has excellent transparency across a broad range of wavelengths, from ultraviolet (UV) to infrared (IR), typically spanning 0.15 to 5.5 microns. This wide transmission range makes sapphire prisms versatile for applications in various spectral regions, including UV, visible, and IR optics.

4. High Refractive Index

• Sapphire has a relatively high refractive index (around 1.76 at 589 nm), which enables effective light manipulation within prisms. This property is critical for beam deviation, dispersion, and other optical functions.

5. Chemical Resistance

• Sapphire is chemically inert and resistant to most acids, alkalis, and solvents. This property makes sapphire prisms suitable for use in chemically aggressive environments, ensuring longevity and reliability.

6. Mechanical Strength

• Sapphire's strong mechanical properties provide resistance to pressure, shock, and mechanical stresses. This makes sapphire prisms suitable for use in harsh or physically demanding environments.

7. Low Thermal Expansion

• Sapphire has a low coefficient of thermal expansion, which means it undergoes minimal dimensional changes with temperature fluctuations. This property ensures that the optical performance of sapphire prisms remains stable even in varying temperature conditions.

8. Biocompatibility

• Sapphire is biocompatible, meaning it does not cause adverse reactions when in contact with biological tissues. This property makes sapphire prisms suitable for use in medical and biomedical applications, such as in imaging and diagnostic equipment.

9. Customizability

• Sapphire prisms can be customized in terms of size, orientation, and coatings. This flexibility allows them to be tailored to specific optical systems and applications, ensuring optimal performance for particular needs.

These properties collectively make sapphire prisms a preferred choice for applications requiring precision, durability, and reliability in both optical and industrial fields.

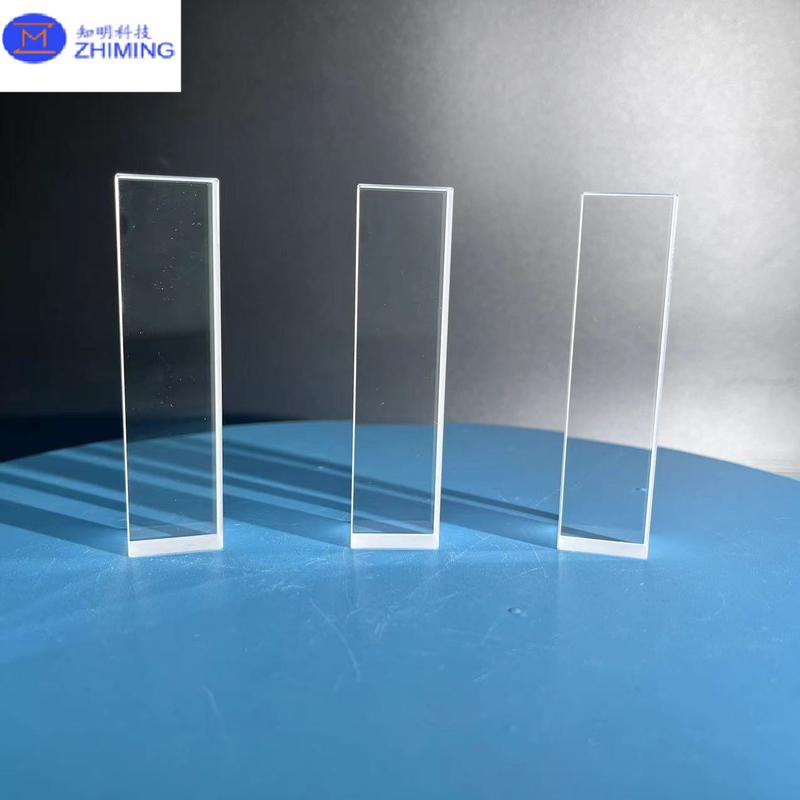

sapphire prism's showcase

sapphire prism's application

1. Optical Systems

• Laser Systems: Sapphire prisms are commonly used in high-power laser systems due to their high thermal stability and resistance to optical damage. They help direct and manipulate laser beams with precision.
• Spectroscopy: In spectroscopy, sapphire prisms are used to disperse light into its component wavelengths for analysis. Their wide optical transmission range makes them suitable for applications involving UV, visible, and infrared light.
• Imaging Systems: Sapphire prisms are utilized in high-resolution imaging systems, including cameras, telescopes, and microscopes, where their optical clarity and durability are essential.

2. Aerospace and Defense

• Infrared Sensors: Due to their transparency in the infrared (IR) spectrum, sapphire prisms are often used in IR sensors for missile guidance, thermal imaging, and night vision systems in aerospace and defense applications.
• Optical Windows: Sapphire prisms are also used as optical windows in harsh environments, such as in aerospace applications, where they need to withstand extreme temperatures, high pressure, and aggressive chemicals while maintaining optical clarity.

3. Semiconductor Industry

• Photolithography: In the semiconductor industry, sapphire prisms are employed in photolithography equipment, where precision optics are essential for creating intricate patterns on silicon wafers. Their durability and resistance to harsh chemicals make them ideal for use in cleanroom environments.
• Inspection and Metrology: Sapphire prisms are also used in inspection systems that require precise optical components to measure and verify the quality of semiconductor wafers.

4. Medical and Biomedical Devices

• Endoscopy: In medical imaging, sapphire prisms are used in endoscopic equipment due to their biocompatibility and optical clarity. They help direct light and images through small, minimally invasive devices.
• Laser Surgery: Sapphire prisms are utilized in laser surgery equipment, where their resistance to high temperatures and optical damage ensures reliable performance during procedures.

5. Scientific Research

• High-Temperature Optics: In scientific experiments that require optics to operate in high-temperature environments, such as in furnaces or plasma research, sapphire prisms are a preferred choice due to their ability to withstand extreme temperatures without degrading.
• Nonlinear Optics: Sapphire prisms are also used in nonlinear optical systems, where their properties help generate and manipulate higher harmonic frequencies of light for advanced research applications.

6. Industrial Applications

• Precision Instrumentation: In industries requiring high-precision measurement, such as aerospace, automotive, and manufacturing, sapphire prisms are employed in instruments that measure and align components with high accuracy.
• Sensors: Sapphire prisms are used in sensors that operate under extreme conditions, such as in oil and gas exploration, where high pressure and chemical resistance are essential for reliable sensor performance.

7. Communications

• Fiber Optic Networks: Sapphire prisms are also used in optical communication systems, particularly in fiber optic networks, where they help control and direct light signals over long distances.

Q&A

What is prism Sapphire?

1. Material and Usage in Optics:

• Prism Sapphire typically refers to a form of synthetic sapphire used to create optical prisms. Synthetic sapphire is a single-crystal form of aluminum oxide (Al2O3) and is known for its exceptional hardness, transparency, and thermal stability.
• Due to its durability and ability to transmit a wide range of light wavelengths, sapphire prisms are often used in high-performance optical systems, including lasers, sensors, and other precision instruments.

2. Applications:

• Optical Components: In devices requiring high precision and resistance to extreme conditions (e.g., aerospace and military applications).
• Watch Crystals: Synthetic sapphire, known for its scratch resistance, is also commonly used in high-end watches for transparent covers or watch faces.
• Semiconductor Industry: Sapphire prisms can be used as substrates for semiconductor manufacturing, especially in LED production.
