Quartz Glass Wafer JGS1 JGS2 BF33 Wafer 8inch 12inch 725 ± 25 Um 1000±25um Or Customized

Quartz glass wafer JGS1 JGS2 BF33 wafer 8inch 12inch 725 ± 25 um 1000±25um or customized

Quartz glass wafer JGS1 JGS2 BF33 wafer 8inch 12inch‘s abstratc

Fused silica wafers, such as JGS1 and JGS2, are highly transparent optical materials with low thermal expansion and excellent chemical resistance. JGS1 is known for its superior UV transmission, while JGS2 offers higher thermal stability and can withstand extreme temperatures. These wafers are widely used in industries requiring precision optics, such as semiconductor manufacturing, laser systems, and scientific research. Available in standard sizes like 8-inch and 12-inch, they are also customizable to meet specific requirements, making them an essential component in high-tech applications where optical clarity and durability are critical.

Quartz glass wafer JGS1 JGS2 BF33 wafer 8inch 12inch‘s properties

Quartz glass wafers, including JGS1, JGS2, and BF33, have unique properties tailored to high-tech industries. Below are their key properties:

1. JGS1 (Quartz Glass):

   • Optical Transmission: Excellent in the ultraviolet (UV) range, especially deep UV (wavelengths below 200nm).
   • Thermal Expansion: Extremely low, providing excellent resistance to thermal expansion and contraction.
   • Chemical Resistance: Strong resistance to chemical corrosion from acids and alkalis.
   • Applications: UV optics, laser systems, semiconductor manufacturing, and photolithography.

2. JGS2 (Quartz Glass):

   • Optical Transmission: High transmission in the visible and near-infrared (NIR) spectrum.
   • Thermal Stability: Superior to JGS1, making it suitable for environments with high-temperature fluctuations.
   • Mechanical Strength: Strong resistance to mechanical stress and thermal shock.
   • Applications: Ideal for infrared (IR) optics, high-temperature applications, and precision instruments.

3. BF33 (Borosilicate Glass):

   • Thermal Shock Resistance: Excellent, with the ability to withstand rapid temperature changes.
   • Chemical Resistance: Strong resistance to acids, alkalis, and other corrosive substances.
   • Optical Properties: Good light transmission in the visible spectrum.
   • Applications: Frequently used in optical devices, electronics, and medical fields due to its durability and versatility.

These wafers are typically available in standard sizes of 8-inch and 12-inch diameters, though customization is possible for specific industry applications. They are critical in sectors requiring precision optics, chemical resistance, and thermal stability.

Quartz glass wafer JGS1 JGS2 BF33 wafer 8inch 12inch‘s applications

Quartz glass wafers, including JGS1, JGS2, and BF33, find wide-ranging applications due to their unique properties. Here’s a breakdown of their applications:

1. JGS1 Quartz Glass Wafer:

   • UV Optics: Due to its excellent UV transmission, JGS1 is widely used in UV lenses, windows, and other optical components for photolithography and UV lasers.
   • Semiconductor Industry: Used in photomasks, substrates, and precision optics for manufacturing semiconductor devices.
   • Laser Systems: Utilized in components requiring high UV transparency and thermal resistance.
   • Scientific Research: JGS1’s high purity and chemical resistance make it ideal for high-precision optical instruments and research setups.

2. JGS2 Quartz Glass Wafer:

   • Infrared (IR) Optics: High transmission in the visible and near-infrared (NIR) ranges makes JGS2 suitable for IR sensors, windows, and lenses.
   • High-Temperature Applications: With superior thermal stability, it’s used in high-temperature environments, such as in furnace windows or as a substrate in extreme conditions.
   • Precision Instruments: Common in scientific and industrial applications that require optical clarity and thermal resilience.

3. BF33 Borosilicate Glass Wafer:

   • Optical and Electronic Devices: Used in displays, screens, and sensors where high durability and thermal stability are required.
   • Medical Applications: Ideal for medical instruments and diagnostics equipment, offering chemical resistance and optical clarity.
   • Laboratory Glassware: Frequently used in the production of durable laboratory tools and containers that must withstand high temperatures and chemical exposure.

Standard Sizes: Available in 8-inch and 12-inch wafers, they can be customized for specific high-tech industries such as aerospace, electronics, optics, and semiconductor manufacturing.

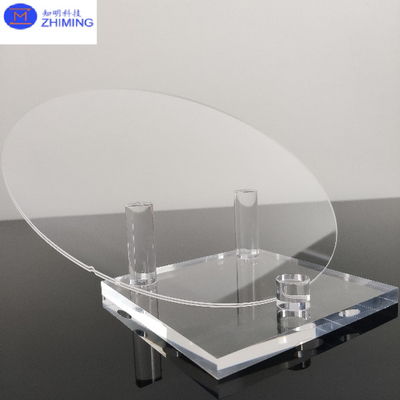

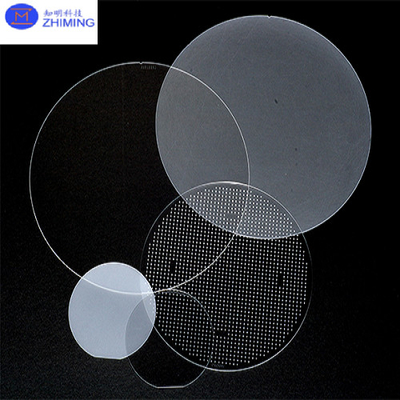

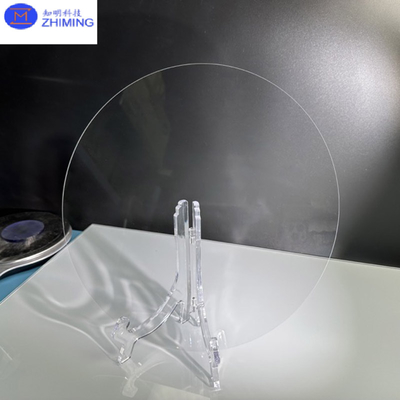

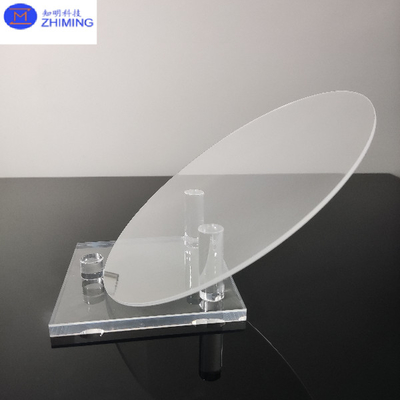

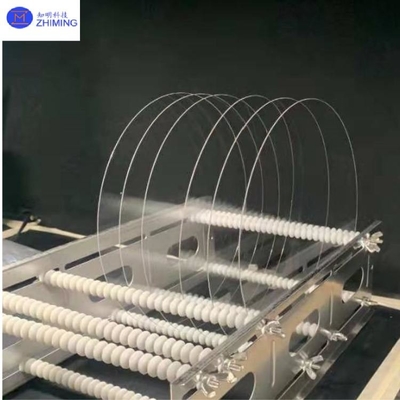

Quartz glass wafer JGS1 JGS2 BF33 wafer 8inch 12inch‘s photo
