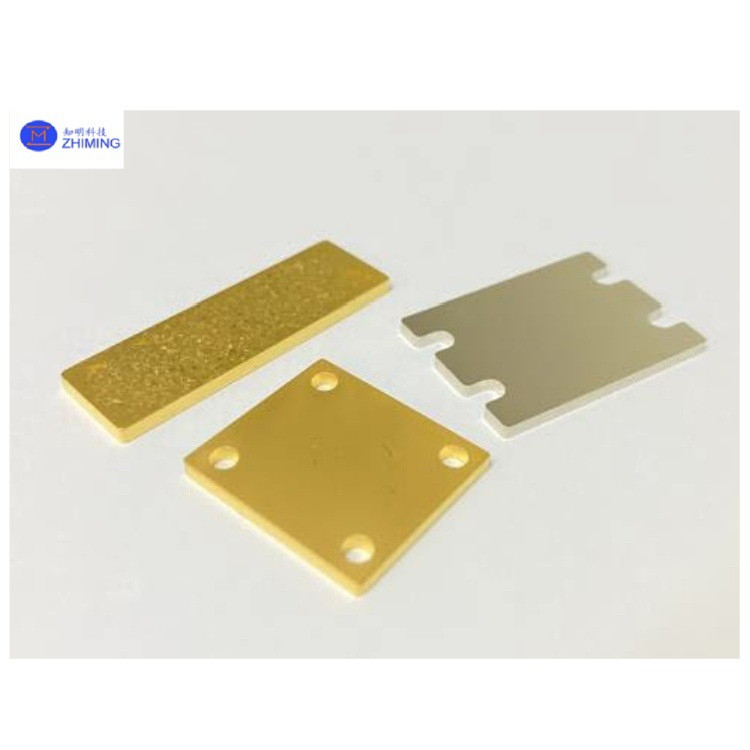

Diamond-copper Composite Material With High Thermal Conductivity COS Series Device Package
Diamond-copper Composite Material With High Thermal Conductivity COS Series Device Package
Diamond-copper Composite Material With High Thermal Conductivity COS Series Device Package
Diamond-copper Composite Material With High Thermal Conductivity COS Series Device Package

Diamond-copper Composite Material With High Thermal Conductivity COS Series Device Package

Product Details

Place of Origin: CHINA

Brand Name: ZMSH

Certification: rohs

Model Number: Diamond-copper composite material

Payment & Shipping Terms

Delivery Time: 2-4 weeks

Payment Terms: T/T

Get Best Price

Product Details

Product Description
Highlight:

Diamond-copper Composite Material

,

0.4μm Diamond-copper Composite Material

Thermal Conductivity：:
> 450 W /m K
Density::
Only 5.6-6.8g/cm3
Surface Roughness::
Ra < 0.4 μm
Application:
Optical Communication Product Packaging
Thermal Conductivity：:
> 450 W /m K
Density::
Only 5.6-6.8g/cm3
Surface Roughness::
Ra < 0.4 μm
Application:
Optical Communication Product Packaging
Diamond-copper Composite Material With High Thermal Conductivity COS Series Device Package

Product Description

Diamond-copper composite material with high thermal conductivity COS series device package

Diamond copper composite material is composed of diamond and copper. It has the characteristics of high thermal conductivity and matching coefficient of thermal expansion with Si. It is very suitable for the packaging field of optoelectronic products with high thermal conductivity requirements, and can replace the currently widely used Cu/W, Al/SiC and other materials.

Diamond-copper Composite Material With High Thermal Conductivity COS Series Device Package 0

Features

  • High thermal conductivity, thermal conductivity > 450 W/K
  • The thermal expansion number is well matched with Si, GaAs and GaN
  • The density is relatively small, only 5.6-6.8 g/CML 3
  • The surface is smooth and clean, and the surface roughness is < 0.4 μm
  • It can be adjusted according to the customer's needs to adjust the gold and rigid stone content to achieve different properties
  • The surface is easy to be plated with nickel and gold

Diamond-copper Composite Material With High Thermal Conductivity COS Series Device Package 1Diamond-copper Composite Material With High Thermal Conductivity COS Series Device Package 2

Technical Parameters

Brand Diamond content Vol.% Thermal conductivity W/MK Coefficient of thermal expansion 10-6/K Flexural strength MPa
D40Cu60 40 450 7.5 300
D50Cu50 50 500 6.8 250
D60Cu40 60 600 6.0 200






Applications

1. Optical communication product packaging
2. COS tie piece sealing
3. T/R component packaging
4. Other heat sink



Diamond-copper Composite Material With High Thermal Conductivity COS Series Device Package 3Diamond-copper Composite Material With High Thermal Conductivity COS Series Device Package 4

Our services

1. Factory direct manufacture and sell.

2. Fast, accurate quotes.

3. Reply to you within 24 working hours.

4. ODM: Customized design is avaliable.

5. Speed and precious delivery.

FAQ

1. Q: How to pay?
     A:100％T/T, Paypal, West Union, MoneyGram, Secure payment and Trade
         Assurance on and etc..

2. Q: What's the delivery time?
     A: (1) For the standard products
    For inventory: the delivery is 5 workdays after you place the order.
    For customized products: the delivery is 2 or 3 weeks after you place the order.
         (2) For the special-shaped products, the delivery is 4 workweeks after you place the order.

3. Q: Can I customize the products based on my need?
     A: Yes, we can customize the material, specifications for your optical components
         based on your needs.
