Product Details
Place of Origin: China
Brand Name: ZMSH
Certification: ROHS
Payment & Shipping Terms
Delivery Time: 2-4weeks
Payment Terms: T/T
Cavity Mode Tolerance: |
Within3% |
Cavity Mode Uniformity: |
<= 1% |
Dopinglevel Tolerance: |
Within ±30 % |
Doping Level Uniformity: |
<= 10% |
PL Wavelength Uniformity: |
Std. Dev Better Than 2nm @inner 140mm |
Thickness Uniformity: |
Better Than ±3% @inner 140mm |
Mole Fraction X Tolerance: |
Within ±0.03 |
Mole Fraction X Uniformity: |
<= 0.03 |
Cavity Mode Tolerance: |
Within3% |
Cavity Mode Uniformity: |
<= 1% |
Dopinglevel Tolerance: |
Within ±30 % |
Doping Level Uniformity: |
<= 10% |
PL Wavelength Uniformity: |
Std. Dev Better Than 2nm @inner 140mm |
Thickness Uniformity: |
Better Than ±3% @inner 140mm |
Mole Fraction X Tolerance: |
Within ±0.03 |
Mole Fraction X Uniformity: |
<= 0.03 |
N-GaAs substrate VCSEL epiwafer 6 inch GaAs orientation 100 111 wavelength 940nm for Gigabit Ethernet
N-GaAs substrate VCSEL epiwafer‘s brief
The N-GaAs (n-type Gallium Arsenide) substrate VCSEL epiwafer is a critical component used in the fabrication of Vertical-Cavity Surface-Emitting Lasers (VCSELs). VCSELs are key in applications like high-speed optical communication, 3D sensing, and LIDAR. The wafer is built on an N-type GaAs substrate, which provides excellent electrical conductivity and a suitable base for epitaxial layer growth.
Epitaxial layers, typically composed of various compound semiconductors, are grown on the substrate to form the laser's active region. This structure allows for the vertical emission of light, offering high efficiency and easy integration into arrays. The wafer typically supports emission at wavelengths like 850 nm or 940 nm, ideal for applications in fiber optic communication and 3D sensing.
N-GaAs substrates provide low defect density, essential for high-performance devices, and can withstand high-temperature processing. Its mechanical stability and thermal conductivity make it suitable for high-power and high-speed applications. This wafer is commonly used in data centers, consumer electronics (e.g., facial recognition in smartphones), and automotive systems like LIDAR, due to its cost-effective and scalable production.
N-GaAs substrate VCSEL epiwafer‘s structure
N-GaAs substrate VCSEL epiwafer‘s data sheet(ZMSH VCSEL EPIWAFER.pdf)

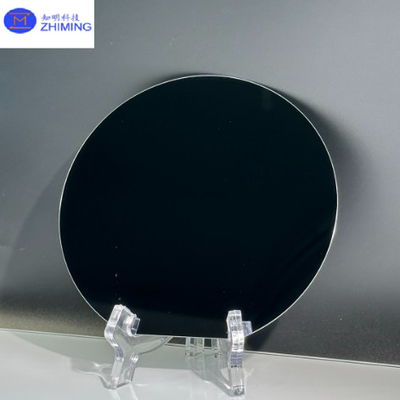

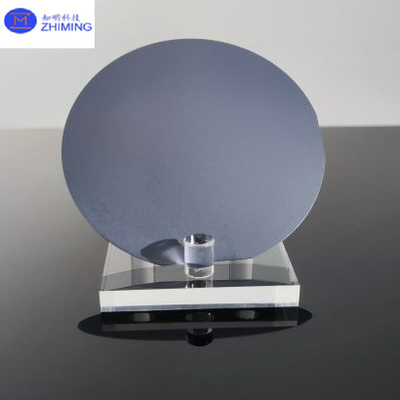

N-GaAs substrate VCSEL epiwafer‘s photo
N-GaAs substrate VCSEL epiwafer‘s application
The N-GaAs substrate VCSEL epiwafer is widely used in various high-tech applications due to its efficient vertical light emission, scalability, and performance advantages. Key application areas include:
Optical Communication:
3D Sensing:
LIDAR (Light Detection and Ranging):
Laser Mice and Printers:
Medical and Industrial Sensors:
These applications highlight the versatility and importance of N-GaAs substrate VCSELs in modern technology.
N-GaAs substrate VCSEL epiwafer‘s properties
The N-GaAs substrate VCSEL epiwafer possesses several important properties that make it ideal for advanced optoelectronic applications, particularly in high-speed communication and sensing technologies. Key properties include:
High Electrical Conductivity:
Low Defect Density:
High Thermal Conductivity:
Wavelength Tunability:
Vertical Emission:
Scalability:
Temperature Stability:
These properties make the N-GaAs VCSEL epiwafer ideal for applications requiring high-speed, efficient, and reliable optoelectronic performance.
N-GaAs substrate VCSEL epiwafer in ZMSH
The N-GaAs (n-type Gallium Arsenide) substrate VCSEL epiwafer is a vital component for manufacturing VCSELs, widely used in optical communication, 3D sensing, and LIDAR. Built on N-GaAs, the wafer provides excellent electrical conductivity and a strong foundation for growing epitaxial layers, enabling high-efficiency vertical light emission at wavelengths such as 850 nm and 940 nm.
ZMSH supplies these high-quality wafers and ensures product reliability through advanced testing methods like PL mapping, F-P mapping, and Cavity mode analysis. These tests help maintain low defect density and ensure the uniformity of the wafers, essential for high-performance applications. ZMSH also offers wafers with different wavelengths and configurations, such as 940 nm single-junction VCSELs, meeting diverse industrial needs.
With ZMSH’s detailed quality control and scalability, these wafers are ideal for applications in data centers, consumer electronics (e.g., facial recognition), and automotive systems, providing cost-effective and reliable solutions.
