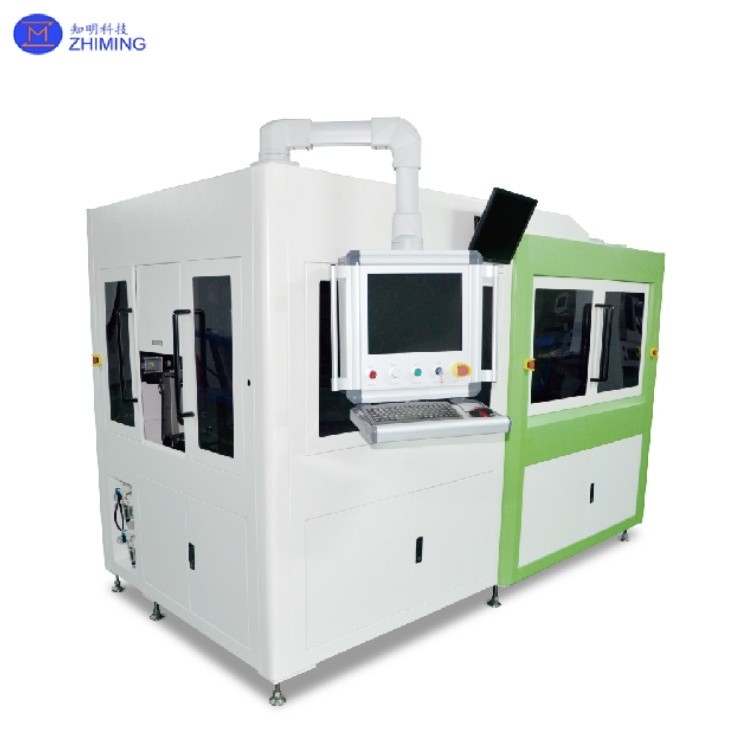

High Precision Laser Drilling Machine With High Efficiency Micro Hole Processing Wavelength 1064nm

High-precision laser drilling machine with high efficiency micro-hole processing wavelength 1064nm





· Laser source: The core component, usually using fiber lasers, CO2 lasers or ultraviolet lasers, produces a laser beam with a high energy density.

· Optical system: includes focusing lenses and mirrors for focusing the laser beam to extremely small spots, up to a few microns in diameter.

· Motion control system: High precision CNC (computer numerical control) system is used to control the movement of the laser head and the table to ensure the accuracy of the drilling position.

· Cooling system: Used to cool lasers and optical systems to prevent overheating.

· Auxiliary gas system: Auxiliary gas (such as nitrogen, oxygen) is provided to help remove molten material and improve the quality of drilling.

· Man-machine interface: including touch screen and control software, easy for users to operate and monitor.



Technical Parameter




1. Peak power: 200W to 500W, specific models such as XH-B200, XH-B400 and XH-B500.

2. Minimum aperture: up to 30μm, or even smaller.

3. Depth range: from shallow holes to deep holes, up to 5mm.

4. Applicable materials: metal, non-metal, ceramic, glass and other hard materials.

Working principle and Technical features

1. The high-precision laser punching machine uses the high energy density and focusing characteristics of the laser beam to form tiny holes on the surface of the material, which has extremely high processing accuracy and stability.
2. The laser power is stable, the wavelength is usually 1064nm, the spot diameter is very small (such as 0.015mm), the pulse width is adjustable, and it is suitable for hole processing with different depth and diameter.
3. Advanced beam control system and precision motion table are adopted to ensure consistent hole quality, uniform aperture and smooth edge without burrs.

Advantages

· High accuracy: The laser beam focusing characteristics make the hole size and position extremely accurate, and the error can be controlled within ±0.005mm.

· High efficiency: Fast punching speed, up to 2000 holes per second, suitable for mass production.

· Flexibility: Support a variety of material processing, suitable for different shapes and depths of hole needs.

· Safety: No need to use tools, avoiding tool wear and replacement costs.


Control System and software


· Equipped with self-developed control system, support graphics stitching, large format correction and other functions.


· The software system can carry out program change and small batch switching to adapt to different processing requirements.
