Product Details
Place of Origin: CHINA
Brand Name: ZMSH
Certification: rohs
Model Number: Microjet laser technology equipment
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: by case
Delivery Time: 5-10months
Payment Terms: T/T
Purpose:: |
Microjet Laser Technology Equipment |
Countertop Volume:: |
300*300*150 |
Positioning Accuracy μm:: |
+/-5 |
Repeated Positioning Accuracy μm:: |
+/-2 |
Numerical Control Type:: |
DPSS Nd:YAG |
Wavelength:: |
532/1064 |
Purpose:: |
Microjet Laser Technology Equipment |
Countertop Volume:: |
300*300*150 |
Positioning Accuracy μm:: |
+/-5 |
Repeated Positioning Accuracy μm:: |
+/-2 |
Numerical Control Type:: |
DPSS Nd:YAG |
Wavelength:: |
532/1064 |

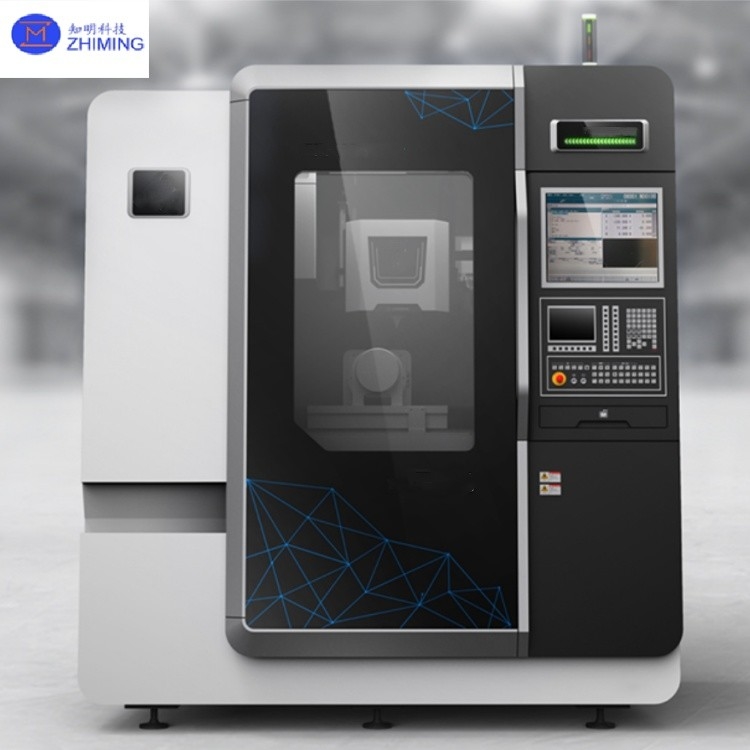

Microjet Laser systems enable ultra-precision machining of semiconductor materials by coupling high-energy pulsed lasers to micron-scale liquid jets (usually deionized water or inert liquids), using the guiding and cooling effects of the liquid jets.
With high precision, low damage and high cleanliness, microjet laser technology is replacing traditional machining and dry laser processes in the semiconductor field, especially in third-generation semiconductors (SiC/GaN), 3D packaging and ultra-thin wafer processing.
| Countertop volume | 300*300*150 | 400*400*200 |
| Linear axis XY | Linear motor. Linear motor | Linear motor. Linear motor |
| Linear axis Z | 150 | 200 |
| Positioning accuracy μm | +/-5 | +/-5 |
| Repeated positioning accuracy μm | +/-2 | +/-2 |
| Acceleration G | 1 | 0.29 |
| Numerical control | 3 axis /3+1 axis /3+2 axis | 3 axis /3+1 axis /3+2 axis |
| Numerical control type | DPSS Nd:YAG | DPSS Nd:YAG |
| Wavelength nm | 532/1064 | 532/1064 |
| Rated power W | 50/100/200 | 50/100/200 |
| Water jet | 40-100 | 40-100 |
| Nozzle pressure bar | 50-100 | 50-600 |
| Dimensions (machine tool) (width * length * height) mm | 1445*1944*2260 | 1700*1500*2120 |
| Size (control cabinet) (W * L * H) | 700*2500*1600 | 700*2500*1600 |
| Weight (equipment) T | 2.5 | 3 |
| Weight (control cabinet) KG | 800 | 800 |
|
Processing capability |
Surface roughness Ra≤1.6um Opening speed ≥1.25mm/s Circumference cutting ≥6mm/s Linear cutting speed ≥50mm/s |
Surface roughness Ra≤1.2um Opening speed ≥1.25mm/s Circumference cutting ≥6mm/s Linear cutting speed ≥50mm/s |
|
For gallium nitride crystal, ultra-wide band gap semiconductor materials (diamond/Gallium oxide), aerospace special materials, LTCC carbon ceramic substrate, photovoltaic, scintillator crystal and other materials processing. Note: Processing capacity varies depending on material characteristics
|
||
1. Small loss of processing materials and processing equipment
2. Greatly reduce grinding links
3. Low labor cost of automated processing
4. High quality machining wall and cutting edge
5. Clean processing without environmental pollution
6. High processing efficiency
7. High processing yield
Test with the debugging processing parameters, and the cutting effect is shown in the figure below. The cutting width of 40μm nozzle is 35um; After the cutting is completed, the wafer is completely scratched, and the back of the cutting tape (UV film) is basically intact and not scratched through. There is no cracking and crack on the edge of the crossing, which meets the processing requirements.
1. Q: What are the main advantages of microjet laser technology equipment?
A: The advantages of microjet laser technology equipment include high-precision processing, good cooling effect, no heat affected zone, parallel cutting edge and efficient processing performance, which is suitable for the precision processing of hard and brittle materials.
2.Q: In what fields are microjet laser technology equipment used?
A: Microjet laser technology equipment is widely used in the third generation of semiconductors, aerospace materials, diamond cutting, metallized diamond, ceramic substrate and other fields.
Tag: #Microjet Island laser equipment, #Microjet laser technology, #Semiconductor wafer processing, #Wafer slice, #Silicon carbide material, #Wafer dicing, #Metal
